Cashco Valve Model C-CS Sanitary Pressure Reducing Regulator

Cashco Valve Model C-CS Sanitary Pressure Reducing Regulator

Manufacturer

Cashco
Product Line

Cashco

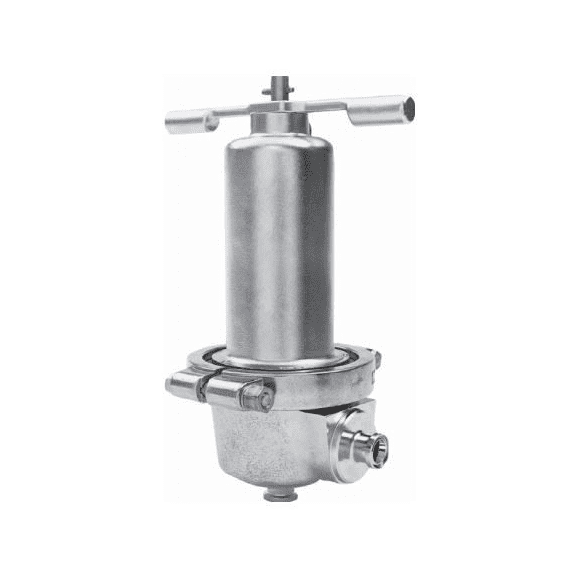

The Model C-CS* is a 316L SST self-contained pressure reducing regulator designed primarily for steam control in sanitary biotechnological process piping systems. The valve is capable of controlling outlet pressure between 10-75 psig (.69-5.2 Barg) with a max i mum inlet pressure of 150 psig (10.3 Barg).

ADDITIONAL INFORMATION

  • Dual-guided Plug: Combines a “winged” guide design directly above the seat and a “nonwetted” guide above the diaphragm.

  • Self-Draining: Angle style valve body with bottom inlet and side outlet.

  • Surface Finish: Interior of valve body polished per ASME BPE 1997 (SFV-4 10 micro-inch Ra fi nish). Interior and exterior surfaces are electropolished.

  • Wetted Materials of Construction: 316L SST metallic wetted parts. Valve is cleaned to Cashco Spec. #S-1576.

  • Versatility: Standard pressure reducing regulator or vacuum resistant pressure reducing regulator, metal seat or composition seat.
