The Rannie Three-Piece Valve Housing
Manufacturer | SPX Flow |
---|---|
Product Line | Rannie |

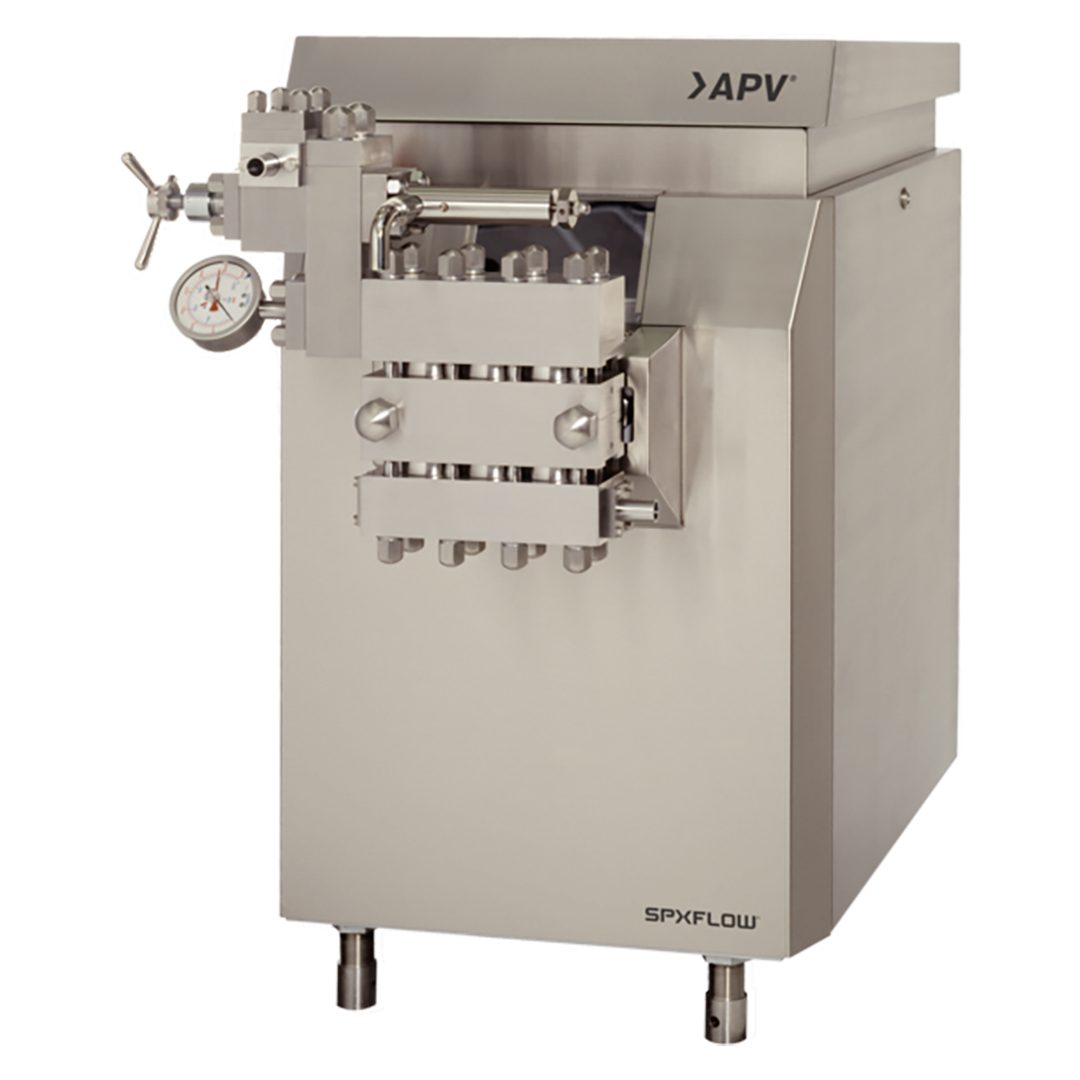

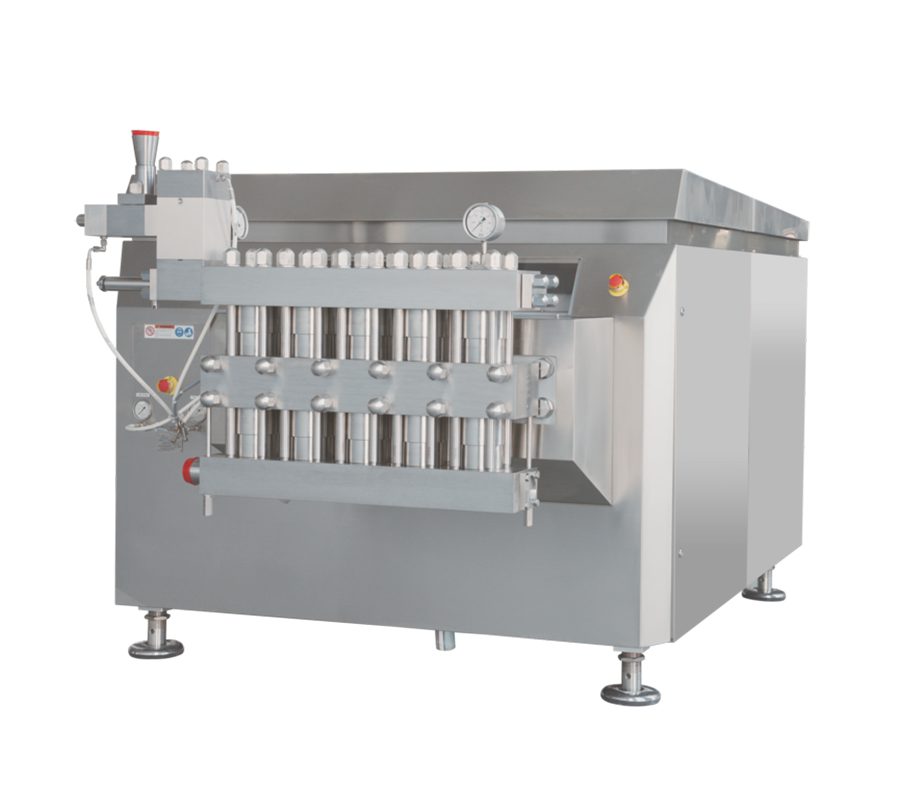

The Rannie cylinder block exemplifies engineering superiority and is well suited for both sanitary and industrial applications. The design of this homogenizer allows for pressure segregation from the suction and discharge manifolds, reducing the possibility of breaking or cracking when adverse operating conditions are present or operating pressures exceed 8,700 psi (600 bar). The Rannie homogenizer is well suited for ultra-high pressure or severe duty applications. It is also available in an aseptic design. The Rannie homogenizer incorporates both ball and poppet valves with no difference in capacity.
ADDITIONAL INFORMATION
APV Homogenizer Valves
- SEO Homogenizing Valve: A flat, conical homogenizing valve made of several ceramic materials is
- XFD Homogenizing Valve: Typically used as a single-stage valve for capacities up to 9,510
- LW Universal Homogenizing Valve: The LW’s (liquid whirl) whirling chambers deliver highly efficient
- Actuation: Standard, high-performance actuation systems are available for all models and can be
Rannie Homogenizers Maximum Capacity G/H Ball and Poppet Type Valves
Model | 2175 PSI | 2465 PSI | 2900 PSI | 3000 PSI | 3625 PSI | 4350 PSI | 5800 PSI | 8700 PSI | 9425 PSI | 1160 PDI | 14500 PSI | 17400 PSI | 21750 PSI |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rannie 5 | 260 | 260 | 185 | 150 | 120 | 65 | 35 | 35 | 20 | ||||
Rannie 15 | 870 | 600 | 500 | 435 | 295 | 175 | 105 | 105 | 80 | 40 | 25 | ||
Rannie 24 | 1370 | 980 | 750 | 660 | 490 | 250 | 170 | 170 | 130 | ||||
Rannie 37 | 2170 | 1530 | 1240 | 1085 | 740 | 530 | 345 | 345 | 265 | ||||
Rannie 55 | 3300 | 2375 | 1980 | 1660 | 1160 | 770 | 555 | 555 | 370 | 210 | 160 | ||
Rannie 110 | 5540 | 4750 | 3670 | 3165 | 2640 | 1980 | 1320 | ||||||
Rannie 132T | 5810 | 5810 | 4490 | 3910 | 2905 | 1980 | 1650 | 1650 | 1060 | ||||

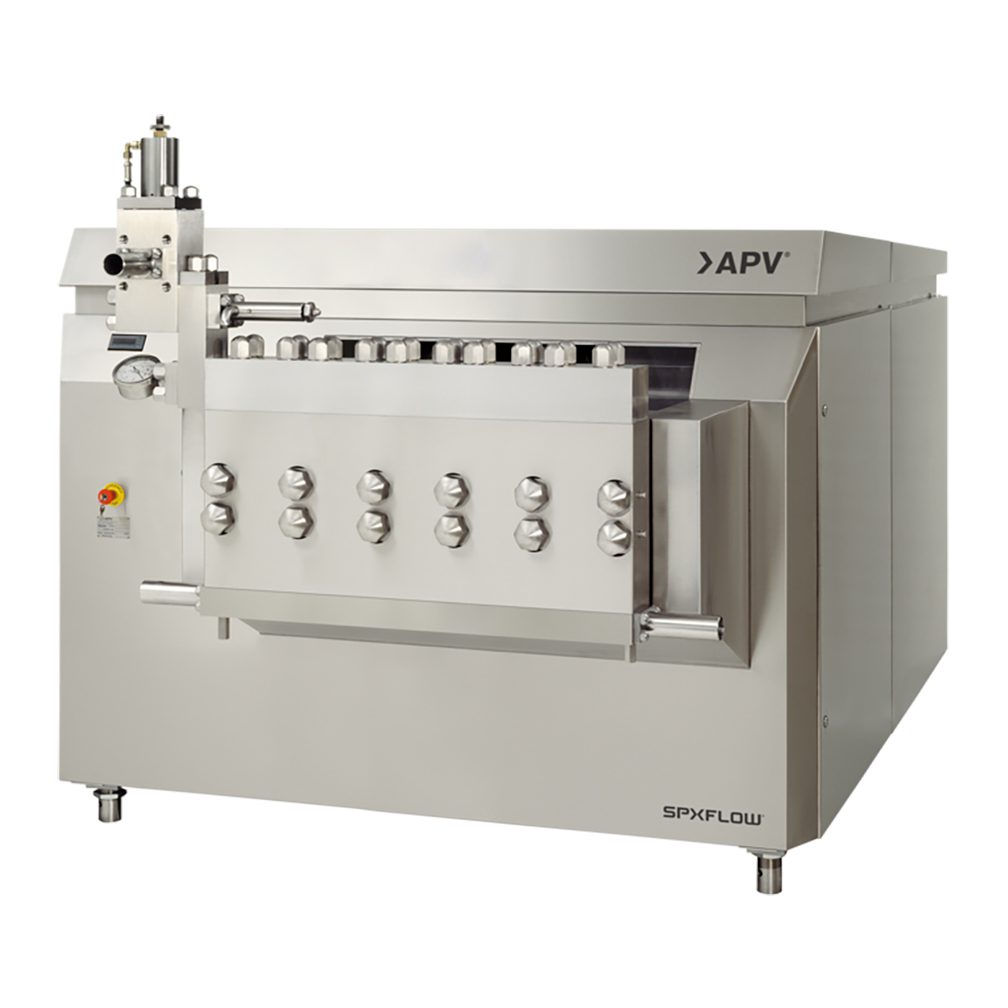

Rannie 132Q | 7920 | 5280 | 4490 | 3830 | 2640 | 1850 | |||||||
Rannie 185Q | 11800 | 9200 | 6600 | 4750 | 4700 | 2600 | 2600 | ||||||
Rannie 315 | 9245 | 9245 | 9245 | 5550 | 5550 | 3750 | 2775 | 2775 | 2115 |
